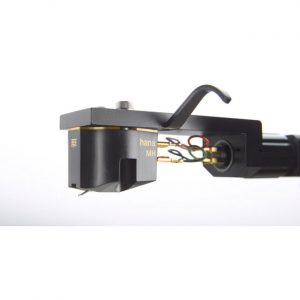

Hana M Microline Stylus Moving Coil Cartridge

£995.00

Free Shipping!

Clear

Description

The Hana M cartridge is a moving coil cartridge with a high end micro-line stylus profile.

There are several advanced features over the Hana E and S ranges that take the sound fidelity to new heights, continuing to offer superb sound quality at its higher price point.

The stylus design is ‘Micro-Line’ (a shape that more closely follows the cutting head when the metal master is being produced), fitting more precisely into the vinyl groove to capture the very smallest details, offering better frequency reproduction and less distortion.

The Hana M Series cartridge bodies are made from black polyoxymethylene (POM) which is a very hard, extremely rigid and very strong thermoplastic. Excel uses a particular formulation of POM manufactured by DuPont that sells under the trademarked name ‘Delrin’, a material with much improved mechanical characteristics such as better resonance damping and hardness.

Parts such as the front yoke, center and rear components of the magnetic electro-motive circuit and wires are Cryogenic processed, this is a ‘cold annealing’ process at near absolute zero temperature, it restructures metals at the molecular level, resulting in lower sound distortion). The result is a more precise and musical sound quality.

Very high-quality copper wire has been selected for MH/ML moving coils, offering greater clarity of sound, thanks to its lower distortion of the musical signal.

There are captive threaded nuts for head shell fixing screws, these are built into the cartridge body offering easy mechanical fixing to the tonearm headshell.

There is a gold plated copper resonance plate integral with the cartridge body, that further reduces distortion from vibrations.

Hana ML is the low output option whereas the MH model is high output so please be sure to select the correct output for your requirements.

Hana do not re-tip cartridges when they are worn out, to ensure consistant performance Hana recommend replacement with a new cartridge which Hana offer at 80% of the current retail price, if you have an old Hana to tradein please contact us directly.

ML Specifications

Stylus: Nude Microline
Cantilever: Aluminium
Magnet: Alnico
Coil Wire: Very High Purity Copper
Cartridge Housing/Base: POM/Brass
Output Level: 0.2mV (ML)
Output Level: 2.0mV (MH)

Channel Balance: <1dB/1kHz
Rec. Tracking Force: 2g
Trackability: 70µ/2g
Compliance: 10×10-6 cm/dyne
Channel Separation: 30dB @ 1kHz
Frequency Range: 12Hz to 45kHz
Impedance: 8Ω (ML)
Impedance: 100Ω (MH)

Suggested Load Impedance: <100Ω (ML)
Suggested Load Impedance: 47kΩ (MH)

Cartridge Weight: 9.5g
Body Colour: Black



MH Specifications

Stylus: Nude Microline
Cantilever: Aluminium
Magnet: Alnico
Coil Wire: Very High Purity Copper
Cartridge Housing/Base: POM/Brass
Output Level: 0.2mV (ML)
Output Level: 2.0mV (MH)
Channel Balance: <1dB/1kHz
Rec. Tracking Force: 2g
Trackability: 70µ/2g
Compliance: 10×10-6 cm/dyne
Channel Separation: 30dB @ 1kHz
Frequency Range: 12Hz to 45kHz
Impedance: 8Ω (ML)
Impedance: 100Ω (MH)
Suggested Load Impedance: <100Ω (ML)
Suggested Load Impedance: 47kΩ (MH)
Cartridge Weight: 9.5g
Body Colour: Black





Additional information

Output Level

Low Output, High Output
